1mm – 32 x 1.5 mm. capacity Adjustable height range Optional single-stroke and double-stroke Double-stroke stop time 5 sec. One-stroke stop time 2.5 sec. Stationary guiderails – Special cast alloy Monoblock body – Special cast alloy Smart PLC Automatic – Manual Operation. Digital Setting Safety-Interrupter Time-Adjusted Stroke MOTOR Power 7.5...

042 x 2 – 065 x 3 Tube Forming Capacity 4 counter boring stations Servo Motor Control, Pneumatic-Lock System PLC Control User program consisting of two main parts; manual and automatic, which can be used through the operator panel, Mono-block column casting body. Digitally adjustable pressure control. All hydraulic components....

Servo-axis, pneumatic quick release, 1D radius bending capacity Double radius Easy back-up via USB Fast, Precise, Silent and powerful Touchscreen LCD, High-strength rigid body and mechanical parts, High-quality pneumatic equipment, High-torque servo motors in the progression, rotation, bending axes, Speed-adjusted precise bending, Easy-to-use operator menu Turkish and English language options...

15” LCD TFT touchscreen color display 1024 x 768 pixel Flash Drive, Compact flash memory reader Handy interface program prepared within Safak Foot switch or button Smooth spare parts supply DES CNC service assurance Custom-made manufacturing of ‘-left’ (counter-clockwise) bending machines. High-quality hydraulic system Multilingual Turkish / English / German...

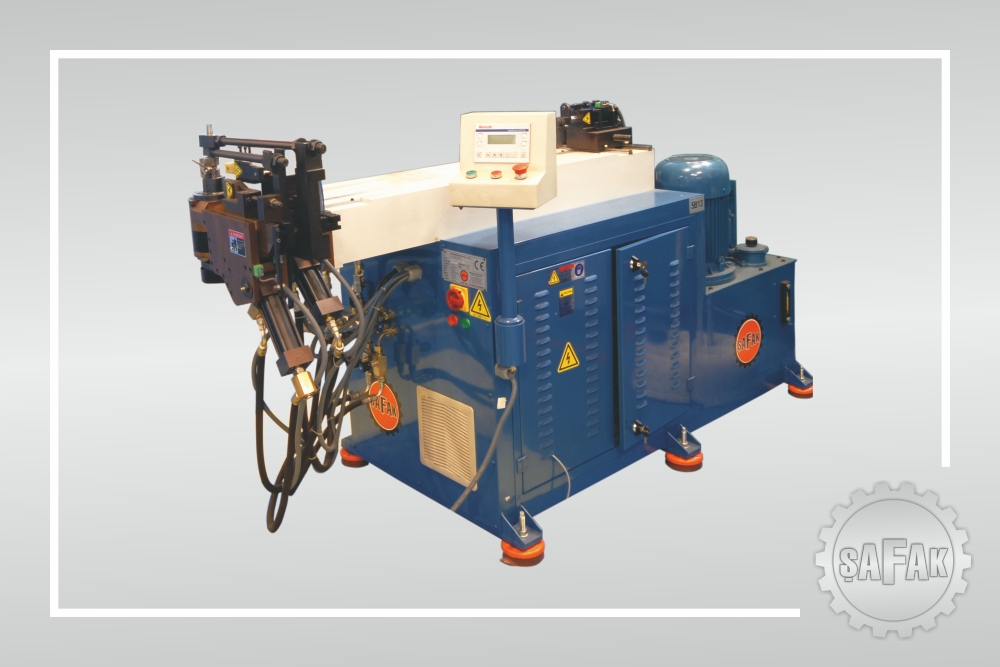

NC B25 NC B42 Hydraulic Motor Power (kW) 7,5 15 Max. Bending Diameter (mm) Ø25×2 (Steel Tube) Ø42×3 (Steel Tube) 140 220 Max. Bending Angle 185° 185° Max. Feeding Length (mm) W/O mandrel Infinite Infinite With mandrel Optional1000 mm (Standard) Optional1000 mm (Standard) Axial Speeds Bending (o/sec) 180° 90° Precisions...

5-AXIS RIGHT&LEFT TUBE BENDING MACHINE SPECS. Ability to use 3 different bending radii Pneumatic-driven vise, support, clamp movements 17″ Touchscreen LCD display Easy back-up with Flash Drive Pentium-based computer with high processing capacity Large recording capacity Easy-to-use operator menus Option to program all movements in a way they move together,...

Hydraulic Motor Power (kW)  15 Max. Bending Diameter (mm) Ø42×3 (Steel Tube) Max. Bending Radius (mm) 220 Max. Bending Angle 185° Max. Feeding Length (mm) Malafasız Infinite Malafalı 3.300 Bükme (°/sn) 90° Axial Speeds İlerleme (mm/sn) 1.500 Döndürme (°/sn) 600 Bükme (°) ±0,1 Precisions İlerleme (mm) ±0,1 Döndürme (°) ±0,05...

B25BR3 B42BR3 Hydraulic Motor Power (kW) 7,5 7,5 Max. Bending Diameter (mm) Ø25×2 (Steel Tube) Ø42×3 (Steel Tube) Max. Bending Radius (mm) 140 220 Max. Bending Angle 185° 185° Max. Feeding Length (mm) W/O mandrel Infinite Infinite With mandrel 3.000 3.550 Bending (°/sec) 240° 90° Axial Speeds Progression (mm/sec) 1.500...

B65BR2 Hydraulic Motor Power (kW) 7,5 Max. Bending Diameter (mm) Ø65×4 (Steel Tube) Max. Bending Radius (mm) 250 Max. Bending Angle 190° Max. Feeding Length (mm) W/O mandrel Infinite With mandrel 3.000 Bending (°/sec) 100° Axial Speeds Progression (mm/sec) 1 – 1.000 Rotation (°/sec) 120 Bending (°) ± 0,1 Precisions...

Hydraulic Motor Power (kW) 22 Max. Bending Diameter (mm) Ø80×4 (Steel Tube) Max. Bending Radius (mm) 250 Max. Bending Angle 185o Max. Feeding Length (mm) W/O mandrel Infinite With mandrel 4.200 Bending (°/sec) 65o Axial Speeds Progression (mm/sec) 1.000 Rotation (°/sec) 600 Bending (°) ±0,1 Precisions Progression (mm) ±0,1 Rotation...

Hydraulic Motor Power (kW) 18,5 Max. Bending Diameter (mm) Ø65×4 (Steel Tube) Max. Bending Radius (mm) 250 Max. Bending Angle 185° Max. Feeding Length (mm) W/O mandrel Infinite With mandrel 4.200 Bending (°/sec) 65° Axial Speeds Progression (mm/sec) 1.000 Rotation (°/sec) 360 Bending (°) ±0,1 Precisions Progression (mm) ±0,1 Rotation...

 NC B65 NC B80 Hydraulic Motor Power (kW) 18,5 22 Max. Bending Diameter (mm) Ø65×4 (Çelik Boru) Ø80×4 (Çelik Boru) Max. Bending Radius (mm) 250 250 Max. Bending Angle 185° 185° Max. Feeding Length (mm) W/O mandrel Infinite Infinite With mandrel Optional1000 mm (Standard) Optional1000 mm (Standard) Axial Speeds Bending...

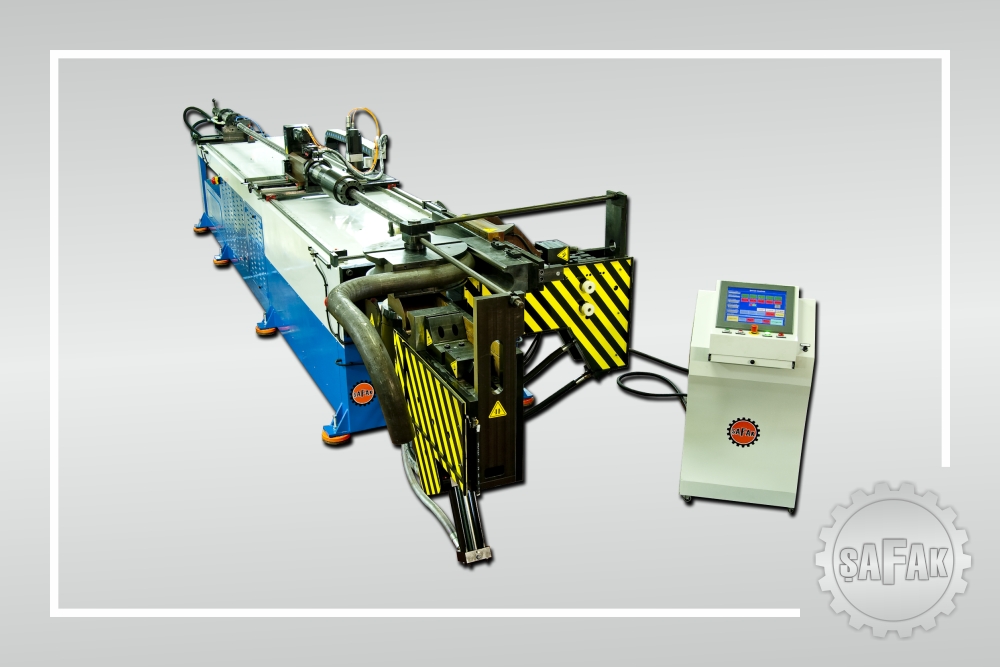

Hydraulic Motor Power (kW) 37 Max. Bending Diameter (mm) Ø130×5 (Steel Pipe) Max. Bending Radius (mm) 500 Max. Bending Angle 190o Max. Feeding Length (mm) W/O mandrel Infinite With mandrel 5.000 Bending (°/sec) 25o Axial Speeds Progression (mm/sec) 500 Rotation (°/sec) 100 Bending (°) ±0,1 Precisions Progression (mm) ±0,1 Rotation...
